Example Software - ZX Printer Tester

This is an interactive program.
It should have a video and an example session included here to demo it.

CONNECTING - CAUTION:
The ZXPrinter Shield should only be plugged into your T?S Printer when power is disconnected from both.

POWER ON
When you first turn power on to your Alphacom32 printer it will still be in a power-off state until you press the ON/ADVANCE button

demo script:

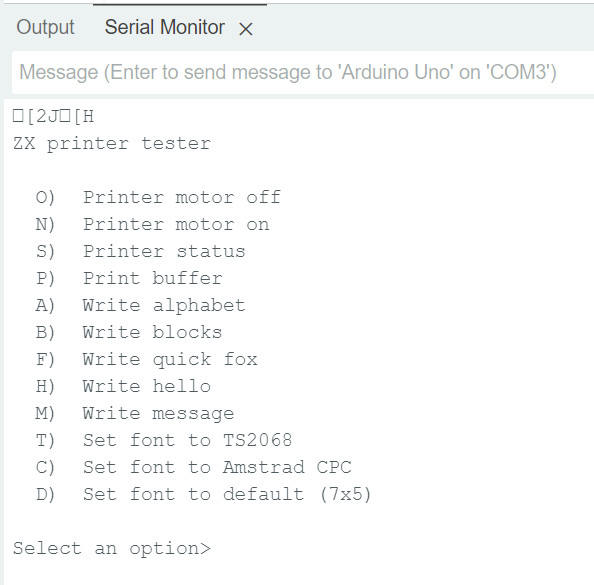

ZXPrinterTest program starts open the Serial port at 9600 baud and you will see the following menu.  Let's review some of these commands.

Command B prints a line of blocks.

I press B and Enter

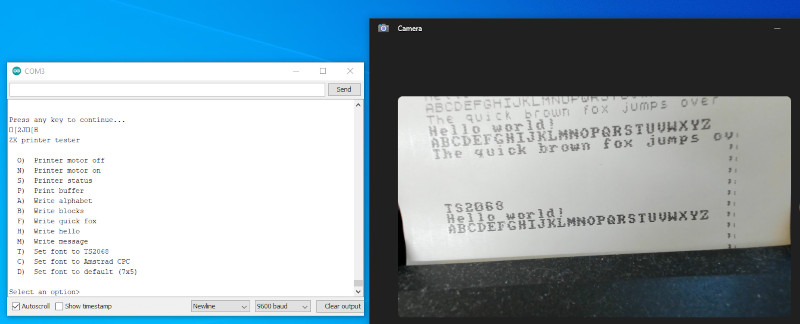

Then I'll press the Advance button on my printer so you can see it on my camera.

You will notice that every time you enter a command, after the commanc executes you get a promt

Press and key to continue.

DEMO SCRIPT ( note underline character is used to designate SPACE character )

A

B

#include "menu.h"
#include "print.h"
#include "pixelbuffer.h"
#include "pixelprint.h"
#include "digitalWriteFast.h"
#include "font.h"
#include "font7x5.h"
#include "fontts2068.h"
#include "fontamstradcpc.h"

#define ZXPSVERSION 2

const char menuPrinterStatus[] PROGMEM    = "Printer status";
const char menuPrinterMotorOn[] PROGMEM   = "Printer motor on";
const char menuPrinterMotorOff[] PROGMEM  = "Printer motor off";
const char menuPrintBuffer[] PROGMEM      = "Print buffer";

const char menuWriteAlphabet[] PROGMEM    = "Write alphabet";
const char menuWriteBlocks[] PROGMEM      = "Write blocks";
const char menuWriteFox[] PROGMEM         = "Write quick fox";
const char menuWriteHello[] PROGMEM       = "Write hello";
const char menuWriteMessage[] PROGMEM     = "Write message";
const char menuSetFontTs2068[] PROGMEM    = "Set font to TS2068";
const char menuSetFontCpc[] PROGMEM       = "Set font to Amstrad CPC";
const char menuSetFontDefault[] PROGMEM   = "Set font to default (7x5)";

void cmdPrinterStatus();
void cmdPrinterMotorOn();
void cmdPrinterMotorOff();
void cmdPrintBuffer();

void cmdWriteAlphabet();
void cmdWriteBlocks();
void cmdWriteFox();
void cmdWriteHello();
void cmdWriteMessage();
void cmdSetFontTs2068();
void cmdSetFontDefault();
void cmdSetFontCpc();

const char title[] PROGMEM = "ZX printer tester";

const prog_commandtype commands[] PROGMEM = {
  { 'O', menuPrinterMotorOff, cmdPrinterMotorOff },
  { 'N', menuPrinterMotorOn,  cmdPrinterMotorOn },
  { 'S', menuPrinterStatus, cmdPrinterStatus },
  { 'P', menuPrintBuffer, cmdPrintBuffer },
  { 'A', menuWriteAlphabet, cmdWriteAlphabet },
  { 'B', menuWriteBlocks, cmdWriteBlocks },
  { 'F', menuWriteFox, cmdWriteFox },
  { 'H', menuWriteHello, cmdWriteHello },
  { 'M', menuWriteMessage, cmdWriteMessage },
  { 'T', menuSetFontTs2068, cmdSetFontTs2068 },
  { 'C', menuSetFontCpc, cmdSetFontCpc },
  { 'D', menuSetFontDefault, cmdSetFontDefault },
  { '\0' } // DONT REMOVE THIS "END OF MENU" MARKER
};

/*
Port FBh Read - Printer Status
  Bit  Expl.
  0    Data Request   (0=Busy, 1=Ready/DRQ)
  1-5  Not used
  6    Printer Detect (0=Okay, 1=None)
  7    Newline        (0=Nope, 1=Begin of new line)
Port FBh Write - Printer Output
  Bit  Expl.
  0    Not used
  1    Undoc/Speed?   (0=Normal, 1=used to slow-down last 2 scanlines)
  2    Motor          (0=Start, 1=Stop)
  3-6  Not used
  7    Pixel Output   (0=White/Silver, 1=Black)
*/
namespace Bus {
  #if ZXPSVERSION < 2
    #if defined(__AVR_ATmega2560__)
      const int A2 = 21;
      const int A7 = 28;

      const int WR = 36;
      const int RD = 37;
      const int IORQ = 38;

      const int D0 = 49;
      const int D1 = 48;
      const int D2 = 47;
      const int D3 = 44;
      const int D4 = 43;
      const int D5 = 45;
      const int D6 = 46;
      const int D7 = A13;
    #elif defined(__AVR_ATmega328P__)
      const int A2 = A0;
      const int A7 = A1;

      const int WR = 12;
      const int RD = 11;
      const int IORQ = 10;

      const int D0 = 2;
      const int D1 = 3;
      const int D2 = 4;
      const int D3 = 5;
      const int D4 = 6;
      const int D5 = 7;
      const int D6 = 8;
      const int D7 = 9;
    #else
      #error Unsupported board
    #endif
  #else
    #if defined(__AVR_ATmega328P__)
      const int WR = 9;
      const int RD = 8;

      const int D0 = 3;
      const int D1 = 4;
      const int D2 = 5;
      const int D6 = 6;
      const int D7 = 7;
    #else
      #error Unsupported board
    #endif
  #endif
}

// Read data
const byte IN_PRINTER_READY = Bus::D0;
const byte IN_PRINTER_NOT_DETECTED = Bus::D6;
const byte IN_PRINTER_ON_PAPER = Bus::D7;

// Write data
const byte OUT_PRINTER_MOTOR_SLOW = Bus::D1;
const byte OUT_PRINTER_MOTOR_OFF = Bus::D2;
const byte OUT_PRINTER_PIXEL_ON = Bus::D7;

void writetext(char* text, int column = 0);

void setup() {
  Serial.begin(9600);

  #if ZXPSVERSION < 2
    digitalWriteFast(Bus::A2, LOW);
    digitalWriteFast(Bus::A7, HIGH);
    digitalWriteFast(Bus::IORQ, LOW);
  #endif
  digitalWriteFast(Bus::WR, HIGH);
  digitalWriteFast(Bus::RD, HIGH);

  #if ZXPSVERSION < 2
    pinModeFast(Bus::A2, OUTPUT);
    pinModeFast(Bus::A7, OUTPUT);
    pinModeFast(Bus::IORQ, OUTPUT);
  #endif
  pinModeFast(Bus::WR, OUTPUT);
  pinModeFast(Bus::RD, OUTPUT);

  digitalWriteFast(IN_PRINTER_READY, LOW);
  digitalWriteFast(IN_PRINTER_NOT_DETECTED, LOW);
  digitalWriteFast(IN_PRINTER_ON_PAPER, LOW);
  digitalWriteFast(OUT_PRINTER_MOTOR_SLOW, HIGH);
  digitalWriteFast(OUT_PRINTER_MOTOR_OFF, HIGH);

  pinModeFast(IN_PRINTER_READY, INPUT);
  pinModeFast(IN_PRINTER_NOT_DETECTED, INPUT);
  pinModeFast(IN_PRINTER_ON_PAPER, INPUT);
  pinModeFast(OUT_PRINTER_MOTOR_SLOW, OUTPUT);
  pinModeFast(OUT_PRINTER_MOTOR_OFF, OUTPUT);

  setpixelfunc(&setpixel);
  setfont(&font7x5);

  clearpixels();
}

void loop() {
  runcmd_P(title, commands);
}

void plotsquares() {
  for(int row=0; row<rows; row++) {
    bool pixel = false;
    for (byte column = 0; column < columns-8; column++) {
      if ((column % 8) == 0) pixel = !pixel;
      setpixel(row, column, pixel);
    }
  }
}

inline void readon() {
  digitalWriteFast(Bus::RD, LOW);
}

inline void readoff() {
  digitalWriteFast(Bus::RD, HIGH);
}

inline void writeon() {
  digitalWriteFast(Bus::WR, LOW);
}

inline void writeoff() {
  digitalWriteFast(Bus::WR, HIGH);
}

inline void readtoggle() {
  readon();
  readoff();
}

inline void writetoggle() {
  writeon();
  writeoff();
}

inline void outpixel(bool ison) {
  if(ison) {
    digitalWriteFast(OUT_PRINTER_PIXEL_ON, HIGH);
  } else {
    digitalWriteFast(OUT_PRINTER_PIXEL_ON, LOW);
  }
  _delay_us(2); // needs to be stable for a couple of microseconds, not sure why
  pinModeFast(OUT_PRINTER_PIXEL_ON, OUTPUT);
  writetoggle();
  pinModeFast(OUT_PRINTER_PIXEL_ON, INPUT);
  digitalWriteFast(OUT_PRINTER_PIXEL_ON, LOW);
}

inline bool isready() {
  readon();
  bool value = digitalReadFast(IN_PRINTER_READY)==HIGH;
  readoff();
  return value;
}

inline bool isconnected() {
  readon();
  bool value = digitalReadFast(IN_PRINTER_NOT_DETECTED)==LOW;
  readoff();
  return value;
}

inline bool isonpaper() {
  readon();
  bool value = digitalReadFast(IN_PRINTER_ON_PAPER)==HIGH;
  readoff();
  return value;
}

inline void waitforpaper() {
  outpixel(false); // paper detect doesn't work while stylus is on
  while(!isonpaper());
}

inline void waitfornopaper() {
  outpixel(false); // paper detect doesn't work while stylus is on
  while(isonpaper());
}

inline void motoron() {
  digitalWriteFast(OUT_PRINTER_MOTOR_OFF, LOW);
  writetoggle();
}

inline void motoroff() {
  digitalWriteFast(OUT_PRINTER_MOTOR_OFF, HIGH);
  writetoggle();
}

inline void motorslow() {
  digitalWriteFast(OUT_PRINTER_MOTOR_SLOW, HIGH);
  writetoggle();
}

inline void motorfast() {
  digitalWriteFast(OUT_PRINTER_MOTOR_SLOW, LOW);
  writetoggle();
}

void printpixels() {
  outpixel(false);
  if (!isconnected()) {
    print_P(PSTR("No printer detected\r\n"));
    return;
  }
  motoron();
  motorslow();
  //TODO: we should start out fast and slow down for the last two lines
  //motorfast();
  waitfornopaper();
  seekpixel();
  for (byte row = 0; row < rows; row++) {
    waitforpaper();
    bool pixelon = false;
    for (byte column = 0; column < columns-1; column++) {
      outpixel(pixelon);
      pixelon = readpixel();
      while(!isready());
      outpixel(pixelon);
     }
    skippixel(1);
    outpixel(false);
  }
  readtoggle();
  motoroff();
}

void cmdPrinterStatus() {
  outpixel(false); // reset latches

  print_P(PSTR("Ready="));
  if (isready()) print_P(PSTR("TRUE"));
  else print_P(PSTR("FALSE"));
  println();

  print_P(PSTR("Connected="));
  if (isconnected()) print_P(PSTR("TRUE"));
  else print_P(PSTR("FALSE"));
  println();

  print_P(PSTR("On paper="));
  if (isonpaper()) print_P(PSTR("TRUE"));
  else print_P(PSTR("FALSE"));
  println();
}

void cmdPrinterMotorOn() {
  print_P(PSTR("Motor on"));
  motoron();
}

void cmdPrinterMotorOff() {
  print_P(PSTR("Motor off"));
  motoroff();
}

void cmdPrintBuffer() {
  print_P(PSTR("Printing buffer\r\n"));
  printpixels();
  print_P(PSTR("Done\r\n"));
}

void cmdWriteAlphabet() {
  clearpixels();

  homecursor();
  for(char ch='A'; ch<='Z'; ch++) {
    writechar(ch);
  }

  printpixels();
}

void cmdWriteBlocks() {
  clearpixels();
  plotsquares();

  printpixels();
}

void cmdWriteFox() {
  clearpixels();
  writetext("The quick brown fox jumps over");

  printpixels();
}

void cmdWriteHello() {
  clearpixels();
  writetext("Hello world!");

  printpixels();
}

void cmdWriteMessage() {
  char* message = getparam_str();
  clearpixels();
  writetext(message);

  printpixels();
}

void cmdSetFontTs2068() {
  print_P(PSTR("Setting font to TS2068\r\n"));
  homecursor();
  setfont(&fontts2068);
}

void cmdSetFontCpc() {
  print_P(PSTR("Setting font to Amstrad CPC\r\n"));
  homecursor();
  setfont(&fontamstradcpc);
}

void cmdSetFontDefault() {
  print_P(PSTR("Setting font to default\r\n"));
  homecursor();
  setfont(&font7x5);
}

Filename ZXPrinterTester.ino
