Alphacom 32 and TIMEX TS2040 Printers
POWER SUPPLY
 |
 |
Purchase New Compatible Printer Power Supply HERE |

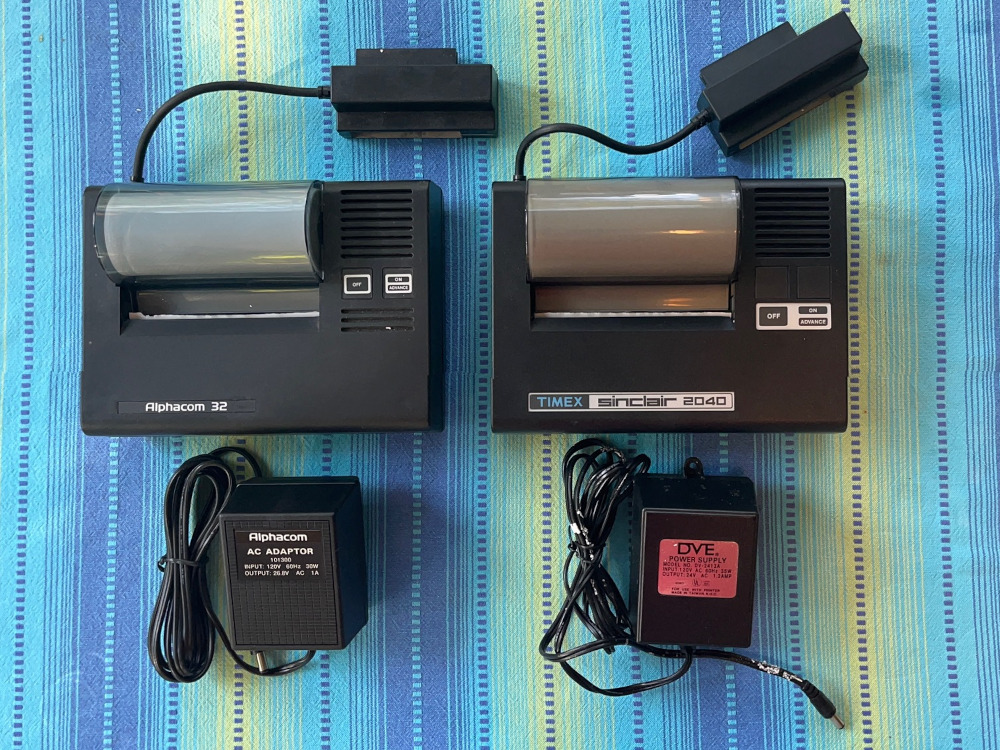

Both use the same connector power connector
| Brand | Alphacom | TIMEX |
| Model | Alphacom 32 | TS2040 |

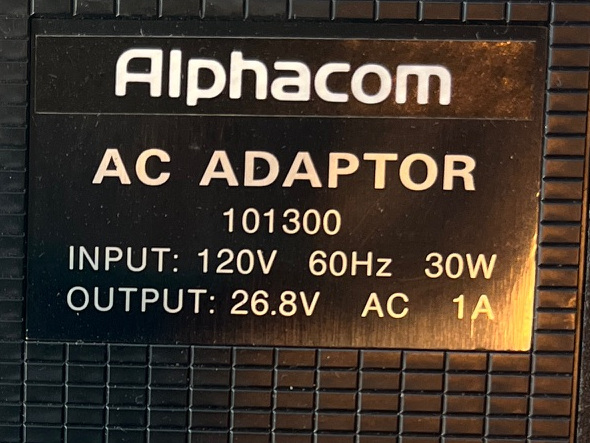

| Power Supply | INPUT: 120V 60Hz 30W OUTPUT: 26.8V AC 1A |

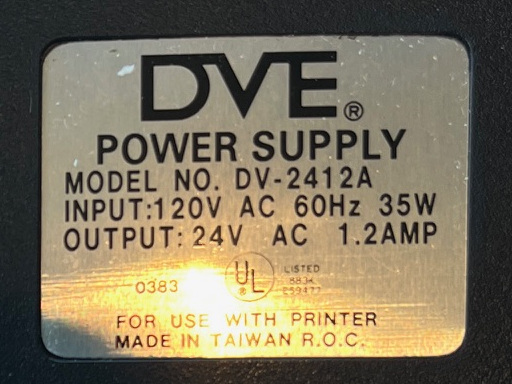

INPUT: 120V 60Hz 35W OUTPUT: 24V AC 1.2A |
| Manufactured | Alphacom Inc. Hong Kong | Alphacom Inc. Taiwan R.O.C. |
| Output Connector | same | |
| Self Test | see instructions | same |
| compatibility | ZX81, TS1000, TS1500, TS1500 | same |
| thermal paper rolls | same | |
| Original Retail Price | $100.00 | same |

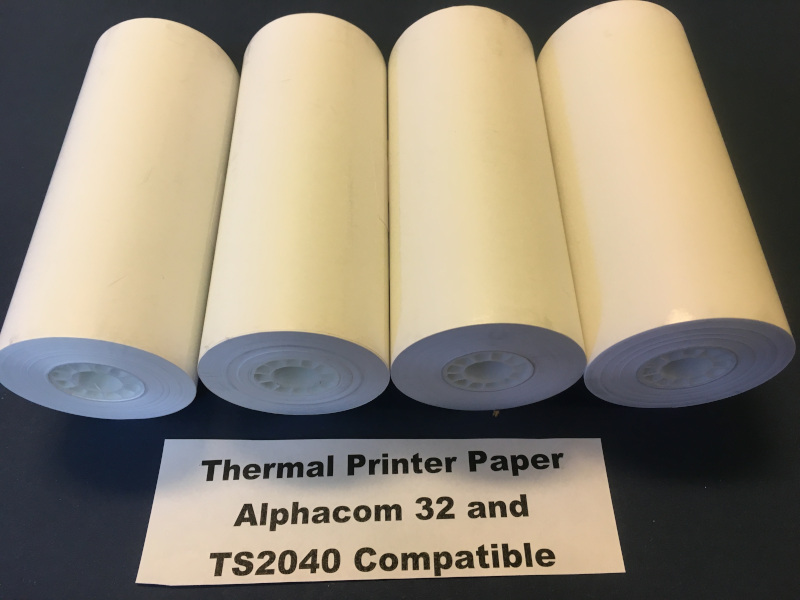

PRINTER PAPER
 |
|
Purchase Printer Paper HERE |
| Original TIMEX Paper |
https://www.aliexpress.us/item/3256805717899025.html DC to AC converter
https://www.aliexpress.us/item/3256804437008731.html 24VDC 1A PS
https://worldofspectrum.net/pub/sinclair/hardware-info/a/Alphacom32Printer_UsersManual.pdf
https://ts2068.groups.io/g/main/attachment/1886/0/TS%202040%20Schematic.pdf TS2040 Schematic
Pure Sinusoidal Inverter https://www.aliexpress.us/item/3256805240043879.html
PRINTER SELF TEST

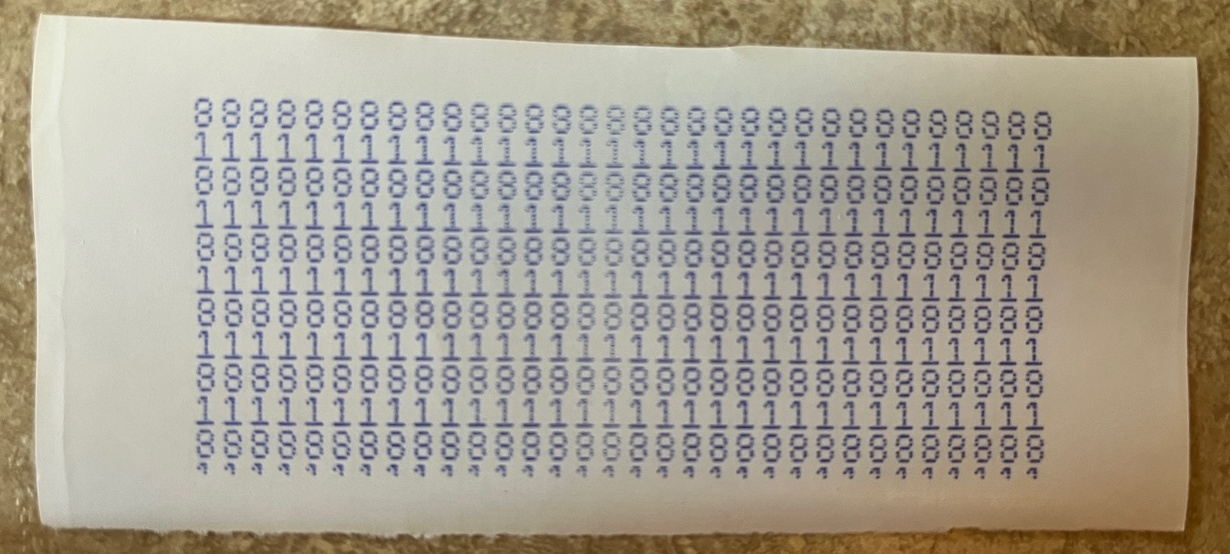

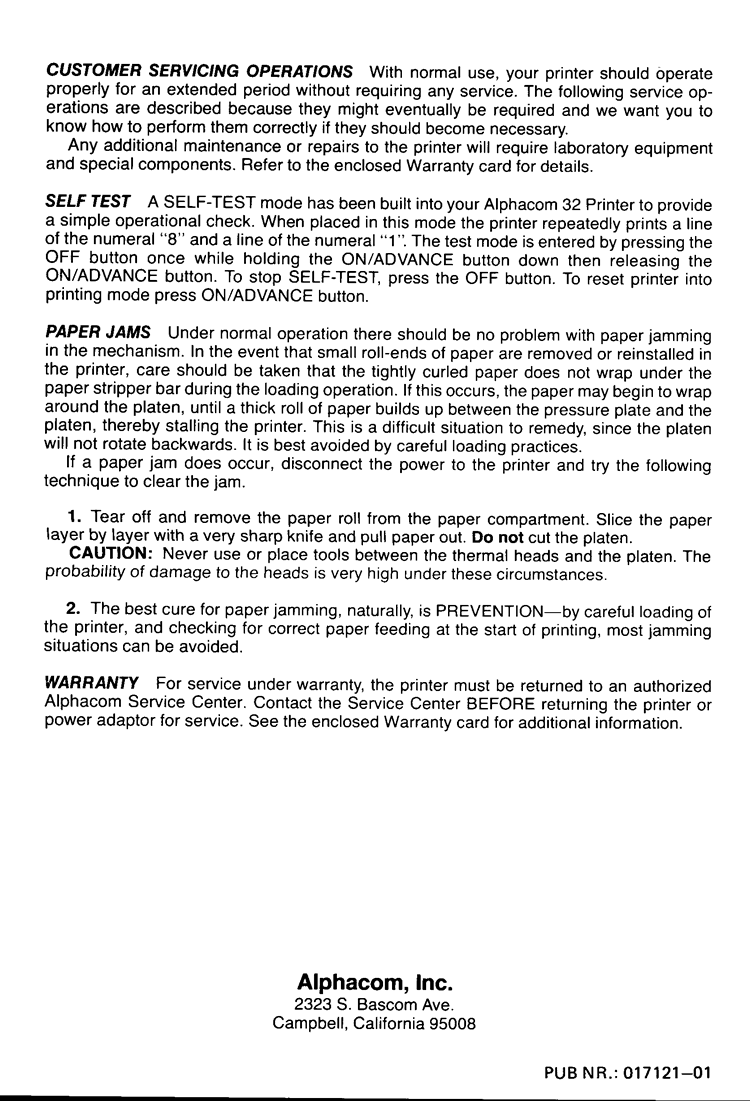

SELF TEST A SELF-TEST mode has been built into your Alphacom 32 Printer to provide a simple operational check. When placed in this mode the printer repeatedly prints a line of numeral "8" and a line of the numeral "1". The test mode is entered by pressing the OFF button once while holding the ON/ADVANCE button down then releasing the ON/ADVANCE button. To stop SELF-TEST, press the OFF button. To reset printer into printing mode press ON/ADVANCE button.

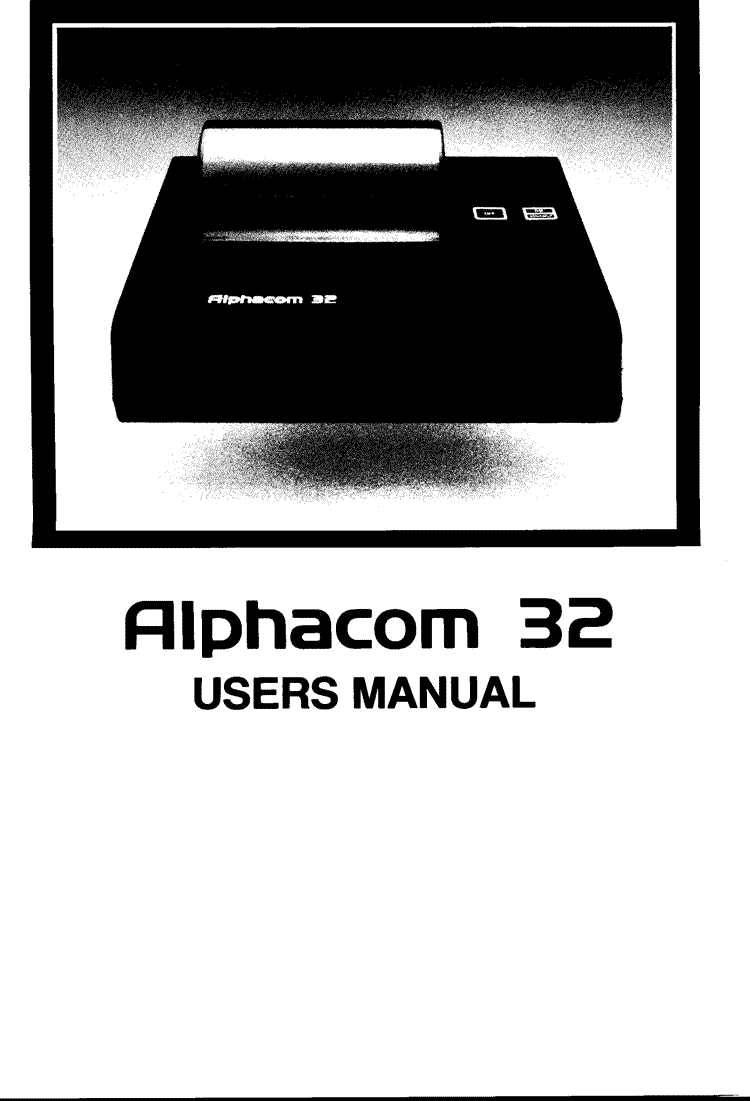

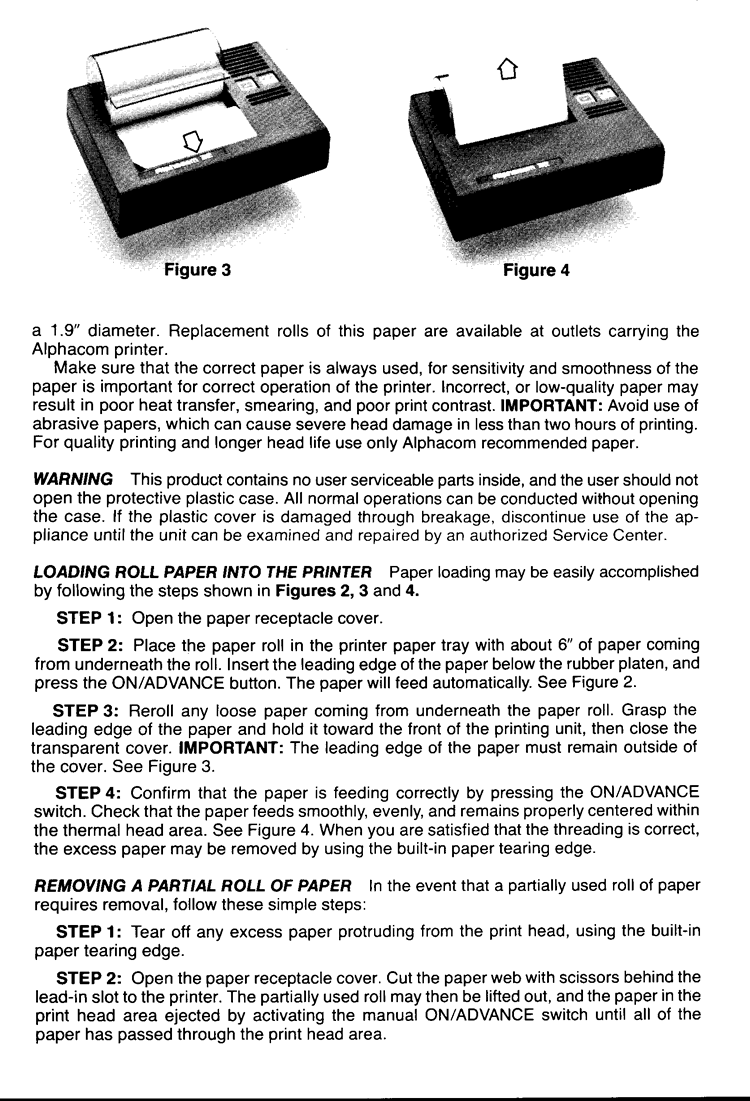

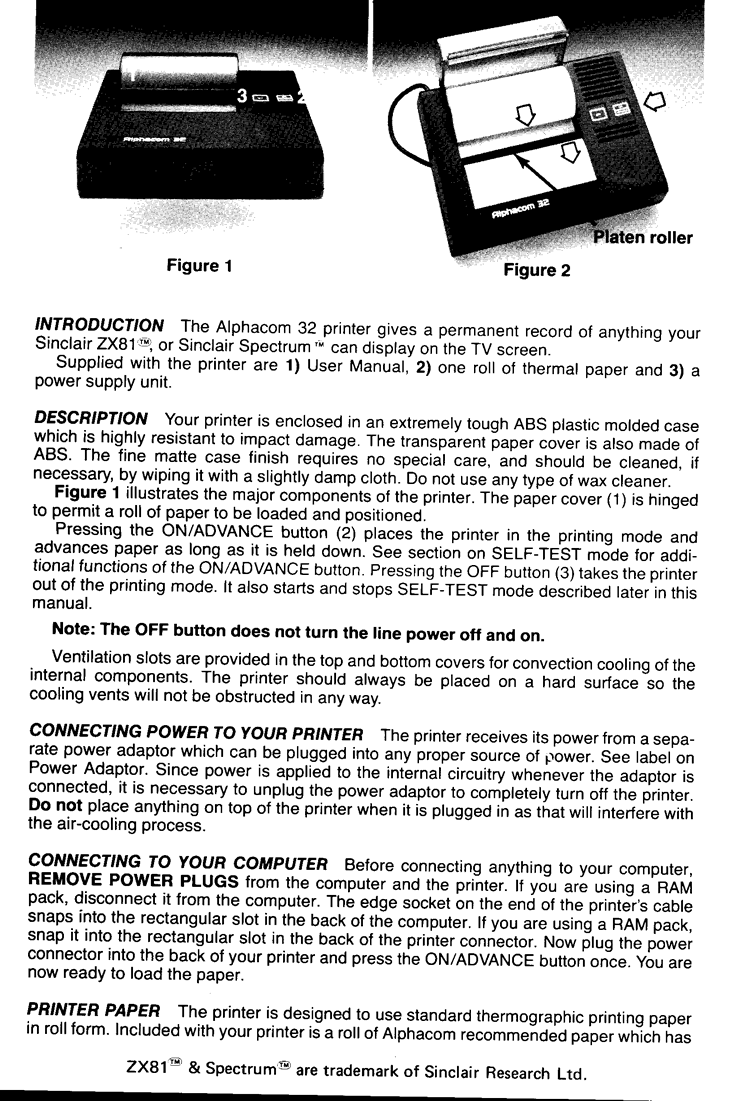

View the printer Manual here
Show photos of printer in boxes, show PS and PS Specs for someone to find a replacement PS
